APPLICATIONS
Refrigerators & Freezers
Water Heaters
Cooking Appliances
Environmental Chambers
Packaging Machines
Laboratory Baths & Ovens
Warming Bins
CONTROL TYPE
Temperature
PACKAGING
Open Frame
MOUNTINGS
Panel Mtg with Integral Setpoint Pot
SIZE
2.625"W x 1.625"H x 1.875"D
product highlights
DESCRIPTION

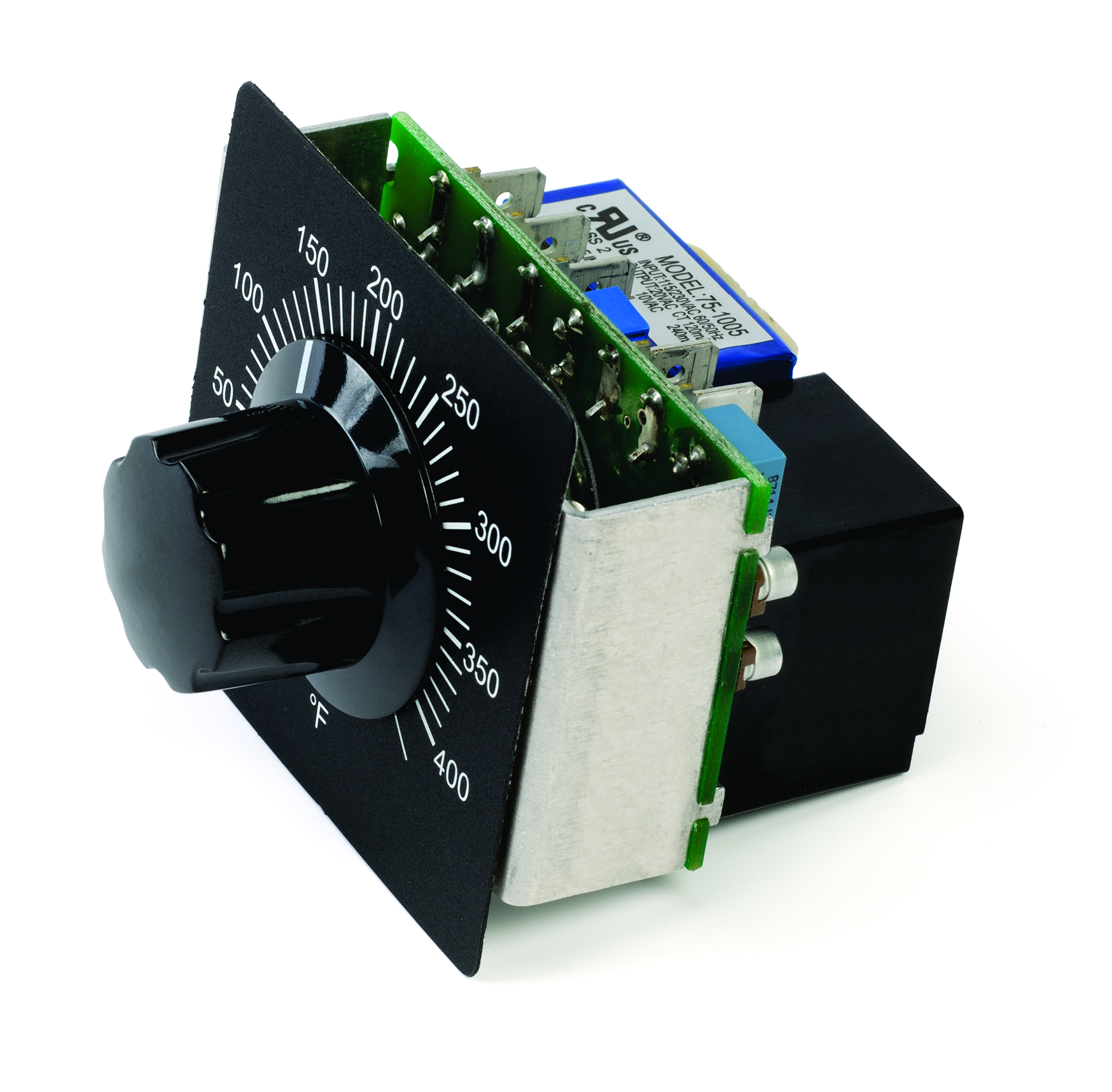

Low cost, high reliability solid state replacement for a bulb & capillary Thermostat.
SENSOR OPTIONS
Type J, K, T or E Thermocouple or NTC Thermistor
CONTROL MODES
On-Off
OUTPUT OPTIONS
SPST or SPDT 30A relay;
24VDC to drive external SSR
FEATURES
Small size and available mtg options retrofit most industry standard B&C mtg dimensions, UL/CUL Recognized and RoHS compliant.
detailed specifications
input voltage
output options
control mode/action
On-Off Heating with 3-4°F hysteresis standard.
(Contact factory for other hysteresis values)
Sensor type
standard ranges/sensors
compensation
Automatic Ambient compensation (Thermocouple only)
sensor fault protection
Output de-energizes with sensor fault.
Pot Shaft Options
Mounting options
operating temperature
Relative Humidity
5 to 90% RH, non-condensing
