product highlights
DESCRIPTION

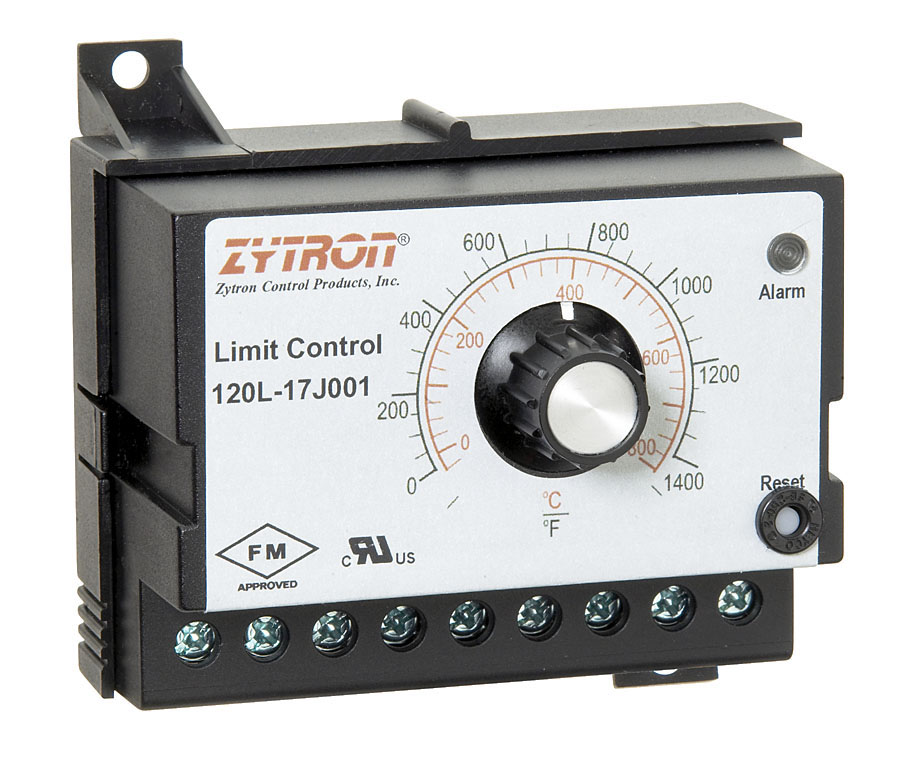

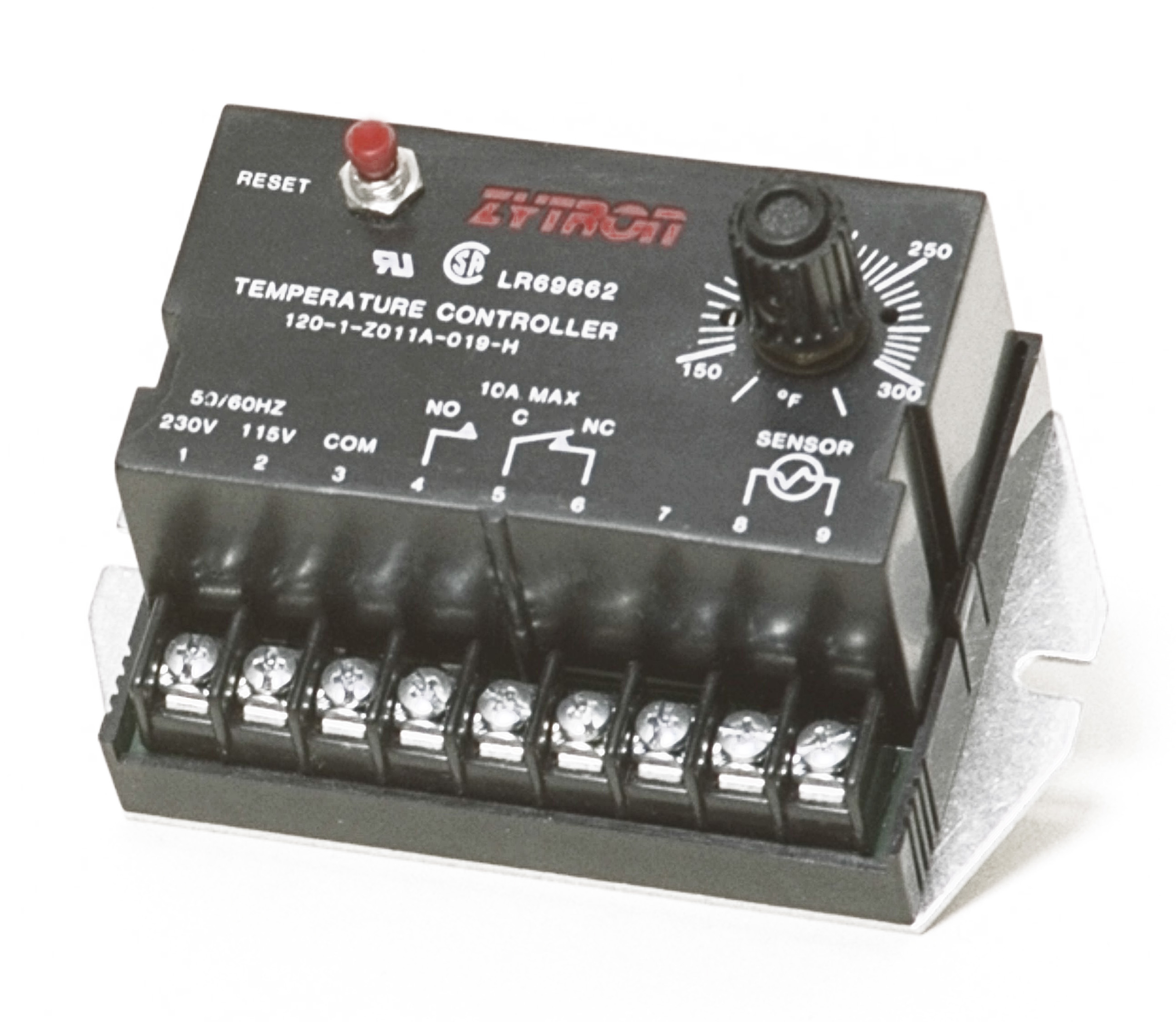

The Series 120 is a low cost completely enclosed Solid State temperature control with UL Class 2 low voltage sensor circuit, a variety of mounting options, the CE mark on selected models and a full two-year parts & labor warranty.
SENSOR OPTIONS
J, K, T, E TC, RTD or NTC Thermistor
CONTROL MODES
On-Off or Time Proportioning
OUTPUT OPTIONS
3, 10 or 20A SPST Relay, 5A Triac or DC
FEATURES
Fixed, local or SP adj.; Hi Limit with manual reset; surface or snap track mounting; UL & CUL approvals (CE on TC version)
detailed specifications
power input
control output
24VDC .03A SSR Driver, SPST N.O. 3A Relay, SPST N.O. 20A Relay
control mode
sensor type
standard RanGES
setpoint accuracy
Typically better than 1% of span
Stability
Typically better than +/- 1F over allowable ambient operating temperature or with +/-10% line voltage variation
Ambient operating temperature
0C to 70C (32F to 158F)
operating relative humidity
5 to 90%, non-condensing
