Enclosed - Dual Surface/DIN Rail Mtg
description | sensor OPTIONS | control mode | output options | features | |||
---|---|---|---|---|---|---|---|
![]() |
Low cost Temperature Limit Control with dual surface and DIN rail mtg enclosure. full data sheet | Thermocouple or RTD | On-Off latching with manual or automatic reset | SPDT Relay or 24VDC SSR driver | Compact surface & DIN rail mtg; touch safe field wiring terminals; local SP adj.; LED trip indicator; local & remote reset; UL/CUL/FM/RoHS. | 170 |
Enclosed - Panel Mtg
description | sensor OPTIONS | control mode | output options | features | |||
---|---|---|---|---|---|---|---|
![]() |

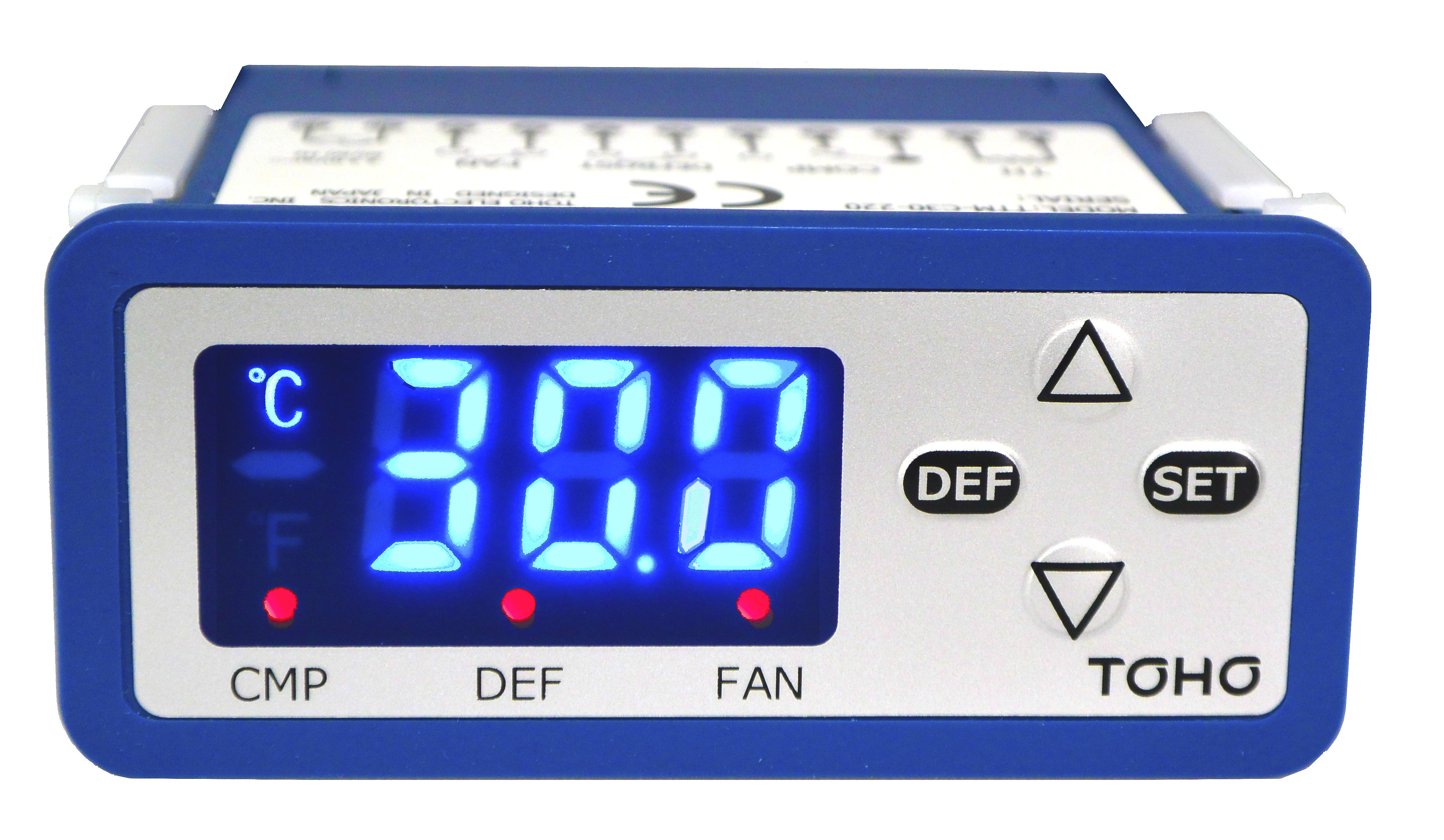

Compact Refrigeration Control with Compressor, Defrost and Fan Control outputs. 3 digit Blue LED display; Set Point range -40.0 to +99.9°C (-40 to +9... full data sheet | Thermistor Sensor included. | ON-OFF | (3) 2A/250VAC Relay outputs Compressor/Defrost/Fan) standard | Power Input: 100VAC±10% or 220VAC±10%, 50/60Hz. Display accuracy: 0.1ºC. Environment: 0 to 55°C, 20 to 50%RH, non condensing. | 198 |
Enclosed - Panel Mtg with Integral Setpoint Pot
description | sensor OPTIONS | control mode | output options | features | |||
---|---|---|---|---|---|---|---|
![]() |
The Series 120 is a low cost completely enclosed Solid State temperature control with UL Class 2 low voltage sensor circuit, a variety of mounting opt... full data sheet | J, K, T, E TC, RTD or NTC Thermistor | On-Off or Time Proportioning | 3, 10 or 20A SPST Relay, 5A Triac or DC | Fixed, local or SP adj.; Hi Limit with manual reset; surface or snap track mounting; UL & CUL approvals (CE on TC version) | 124 | |
![]() |
The Series 120R is a low cost, panel mounting electronic temperature controller with integral set point potentiometer. full data sheet | Thermocouple, RTD or NTC Thermistor | On-Off Heating or Cooling | SPST Relay or DC SSR driver | A variety of factory configured input voltage and set point range/sensor options; screw or bushing mounting; UL/CUL Recognized; RoHS compliant (CE ava... | 188 |
Enclosed - Snap Track
description | sensor OPTIONS | control mode | output options | features | |||
---|---|---|---|---|---|---|---|
![]() |
The Series 120 is a low cost completely enclosed Solid State temperature control with UL Class 2 low voltage sensor circuit, a variety of mounting opt... full data sheet | J, K, T, E TC, RTD or NTC Thermistor | On-Off or Time Proportioning | 3, 10 or 20A SPST Relay, 5A Triac or DC | Fixed, local or SP adj.; Hi Limit with manual reset; surface or snap track mounting; UL & CUL approvals (CE on TC version) | 124 |
Enclosed - Sub-Panel
description | sensor OPTIONS | control mode | output options | features | |||
---|---|---|---|---|---|---|---|
![]() |
The Series 120 is a low cost completely enclosed Solid State temperature control with UL Class 2 low voltage sensor circuit, a variety of mounting opt... full data sheet | J, K, T, E TC, RTD or NTC Thermistor | On-Off or Time Proportioning | 3, 10 or 20A SPST Relay, 5A Triac or DC | Fixed, local or SP adj.; Hi Limit with manual reset; surface or snap track mounting; UL & CUL approvals (CE on TC version) | 124 |
NEMA 4X - Surface Mtg
description | sensor OPTIONS | control mode | output options | features | |||
---|---|---|---|---|---|---|---|
![]() |
The 565 is a highly reliable, microprocessor based Dual Stage Digital Indicating On-Off Temperature Controller housed in a robust, corrosion resistant... full data sheet | Solid State Transducer probe assembly | Each stage set independently for Heating or Cooling mode; factory default is Heating for Stage 1 and Cooling for Stage 2 | SPDT relays rated for 120(208/240)VAC | Compact IP65 watertight enclosure; LED display; simple 4-button operation; selectable heat or cool mode for stage 1 and 2; SPDT relay outputs; visual ... | 134 |
Open Frame - Panel Mtg
description | sensor OPTIONS | control mode | output options | features | |||
---|---|---|---|---|---|---|---|
![]() |

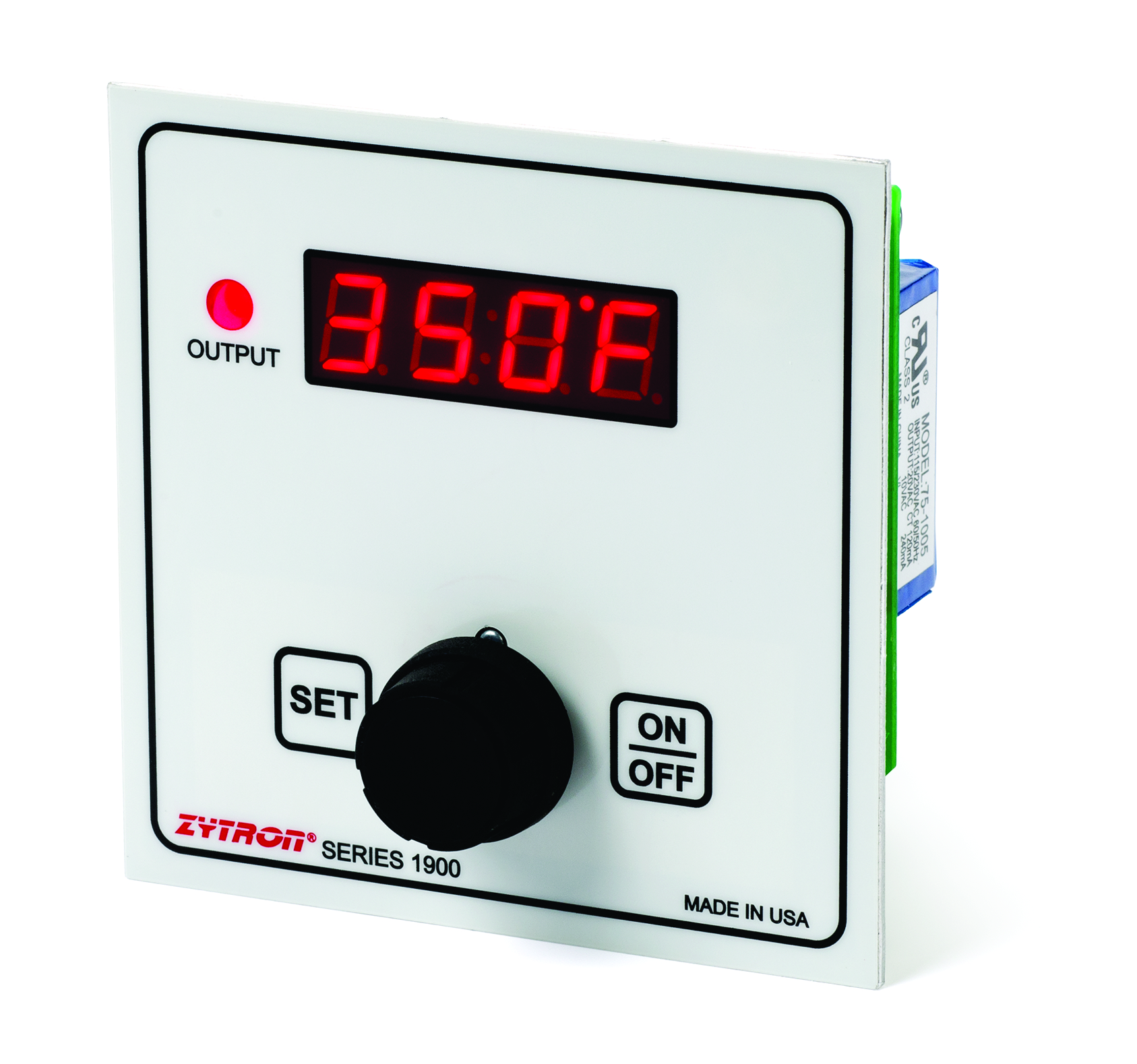

The Series 1900 programmable controller is an advanced, highly reliable microprocessor based control providing unparalleled versatility featuring thre... full data sheet | Thermocouple or RTD | On/Off Temperature Controller with adjustable differential | Form A 30A Relay Form C 30A Relay 12VDC SSR driver | Panel mounting or skeleton construction, field programmable, compact size, bright 4 digit LED display, choice of rotary or push button operator interf... | 166 |
´1/16DIN - Panel Mtg
description | sensor OPTIONS | control mode | output options | features | |||
---|---|---|---|---|---|---|---|
![]() |
Compact (59mm depth) 1/16DIN PID Temperature Controller with advanced features including bright dual PV/SV display, Ultra-Fuzzy control mode for super... full data sheet | Type J, K, T, R, N, S, or B Thermocouple, Pt100ohm and JPt100 RTD. | On-Off, PID or Ultra-Fuzzy for Heating, Cooling and Heating/Cooling | Main Output 3A SPST Relay or 12VDC SSR driver | Large 15.2mm dimmable white PV display, 2 Event outputs standard; multiple alarm configurations; Heating/Cooling capability; integral Timer; selectabl... | 167 | |
![]() |
Versatile DIN style Digital Temperature Controllers in a compact size with advanced features including new brighter display, faster sampling rate, ram... full data sheet | Type K, J, T, R, N, S, B Thermocouple, Pt100, JPt100 RTD, 4 to 20mADC, 0 to 5VDC & 1 to 5VDC | PID or On-Off Heating, Cooling and Heating/Cooling | Main Output Form A Relay, 12VDC SSR driver or 4-20mADC; 1 Form A Event output standard; 2 Form A Event outputs optional | Self-Tuning PID, built-in timer, selectable priority displays for quick access and display masking (blind function) to prevent programming errors, sta... | 168 |
´1/32DIN - Panel Mtg
description | sensor OPTIONS | control mode | output options | features | |||
---|---|---|---|---|---|---|---|
![]() |
Versatile DIN style Digital Temperature Controllers in a compact size with advanced features including new brighter display, faster sampling rate, ram... full data sheet | Type K, J, T, R, N, S, B Thermocouple, Pt100, JPt100 RTD, 4 to 20mADC, 0 to 5VDC & 1 to 5VDC | PID or On-Off Heating, Cooling and Heating/Cooling | Main Output Form A Relay, 12VDC SSR driver or 4-20mADC; 1 Form A Event output standard; 2 Form A Event outputs optional | Self-Tuning PID, built-in timer, selectable priority displays for quick access and display masking (blind function) to prevent programming errors, opt... | 185 |
´1/4DIN - Panel Mtg
description | sensor OPTIONS | control mode | output options | features | |||
---|---|---|---|---|---|---|---|
![]() |
Versatile DIN style Digital Temperature Controllers in a compact size with advanced features and functions including RS485 communications capability t... full data sheet | Type K, J, T, R, N, S, B Thermocouple, Pt100, JPt100 RTD, 4 to 20mADC, 0 to 5VDC & 1 to 5VDC | PID or On-Off Heating, Cooling and Heating/Cooling | Main Output Form A Relay, 12VDC SSR driver or 4-20mADC; 1 Form A Event output standard; 2 Form A Event outputs optional | Self-Tuning PID, built-in timer, selectable priority displays for quick access and display masking (blind function) to prevent programming errors, opt... | 183 |
´1/8DIN Horizontal - Panel Mtg
description | sensor OPTIONS | control mode | output options | features | |||
---|---|---|---|---|---|---|---|
![]() |
Versatile DIN style Digital Temperature Controllers in a compact size with advanced features and functions including RS485 communications capability t... full data sheet | Type K, J, T, R, N, S, B Thermocouple, Pt100, JPt100 RTD, 4 to 20mADC, 0 to 5VDC & 1 to 5VDC | PID or On-Off Heating, Cooling and Heating/Cooling | Main Output Form A Relay, 12VDC SSR driver or 4-20mADC; 1 Form A Event output standard; 2 Form A Event outputs optional | Self-Tuning PID, built-in timer, selectable priority displays for quick access and display masking (blind function) to prevent programming errors, opt... | 187 |
´1/8DIN Vertical - Panel Mtg
description | sensor OPTIONS | control mode | output options | features | |||
---|---|---|---|---|---|---|---|
![]() |
Versatile DIN style Digital Temperature Controllers in a compact size with advanced features and functions including RS485 communications capability t... full data sheet | Type K, J, T, R, N, S, B Thermocouple, Pt100, JPt100 RTD, 4 to 20mADC, 0 to 5VDC & 1 to 5VDC | PID or On-Off Heating, Cooling and Heating/Cooling | Main Output Form A Relay, 12VDC SSR driver or 4-20mADC; 1 Form A Event output standard; 2 Form A Event outputs optional | Self-Tuning PID, built-in timer, selectable priority displays for quick access and display masking (blind function) to prevent programming errors, opt... | 186 |
